Chapter 3 EEG data import & Analysis

The EEG data is available in the ’*.edf’ file extension. We have to download the EEG files and place in the working directory of the Python program such as Jupyter notebook or Spyder. Then we will be using the MNE Python library for the processing of the EEG signal. The following section provides the code block for import the necessary library files for EEG analysis.

3.1 MNE Library for EEG Analysis

import mne # MNE library for EEG analysis
import matplotlib.pyplot as plt # Plotting library

plt.style.use('seaborn-bright') # Plot Style
plt.rcParams['figure.dpi'] = 300 # DPI setting
plt.rcParams['figure.figsize'] = (8, 6)

3.2 Data Import

This code chunk explains how to import the EEG file into the Python workspace by the command mne.io.read_raw_edf. Moreover, it also shows the file info of the EEG file imported into the workspace.

# Data import
raw_h = mne.io.read_raw_edf("h01.edf", preload=True)# Import data file into workspace
# h01 specifies the EEG record of healthy control-1
## Extracting EDF parameters from C:\Users\RajuPC\Documents\MyR\MyGitbook\EEG\EEG_analysis\h01.edf...
## EDF file detected
## Setting channel info structure...
## Creating raw.info structure...
## Reading 0 ... 231249  =      0.000 ...   924.996 secs...
raw_s = mne.io.read_raw_edf("s01.edf", preload=True)# Import data file into workspace
# s01 specifies the EEG record of SZ patient-1

# Give the sample rate
## Extracting EDF parameters from C:\Users\RajuPC\Documents\MyR\MyGitbook\EEG\EEG_analysis\s01.edf...
## EDF file detected
## Setting channel info structure...
## Creating raw.info structure...
## Reading 0 ... 211249  =      0.000 ...   844.996 secs...
print('sample rate:', raw_h.info['sfreq'], 'Hz')
# Give the size of the data matrix
## sample rate: 250.0 Hz
print('Data matrix size : %s channels x %s samples' % (raw_h.info['nchan'], len(raw_h.times)))
## Data matrix size : 19 channels x 231250 samples
print('Channel names:', raw_h.info['ch_names'])
## Channel names: ['Fp2', 'F8', 'T4', 'T6', 'O2', 'Fp1', 'F7', 'T3', 'T5', 'O1', 'F4', 'C4', 'P4', 'F3', 'C3', 'P3', 'Fz', 'Cz', 'Pz']

3.3 Time series plot of the EEG signal

This code plots the raw EEG signal using the available function plot.
Healthy Individual

# Plotting the raw EEG signal
raw_h.plot(start=300,duration=2, block=True, show=False, color='green')

SZ Patient

# Plotting the raw EEG signal
raw_s.plot(start=300,duration=2, block=True, show=False, color='red')

3.4 Bandpass filtering of the EEG signal

This code applies a FIR filter based on windowing technique to design a bandpass filter with lower cut-off frequency at 0.5Hz and upper cut-off frequency at 100Hz.
Healthy Control

xfil_h=raw_h.filter(0.5, 100., fir_design='firwin')#Bandpass filtering
## Filtering raw data in 1 contiguous segment
## Setting up band-pass filter from 0.5 - 1e+02 Hz
##
## FIR filter parameters
## ---------------------
## Designing a one-pass, zero-phase, non-causal bandpass filter:
## - Windowed time-domain design (firwin) method
## - Hamming window with 0.0194 passband ripple and 53 dB stopband attenuation
## - Lower passband edge: 0.50
## - Lower transition bandwidth: 0.50 Hz (-6 dB cutoff frequency: 0.25 Hz)
## - Upper passband edge: 100.00 Hz
## - Upper transition bandwidth: 25.00 Hz (-6 dB cutoff frequency: 112.50 Hz)
## - Filter length: 1651 samples (6.604 sec)

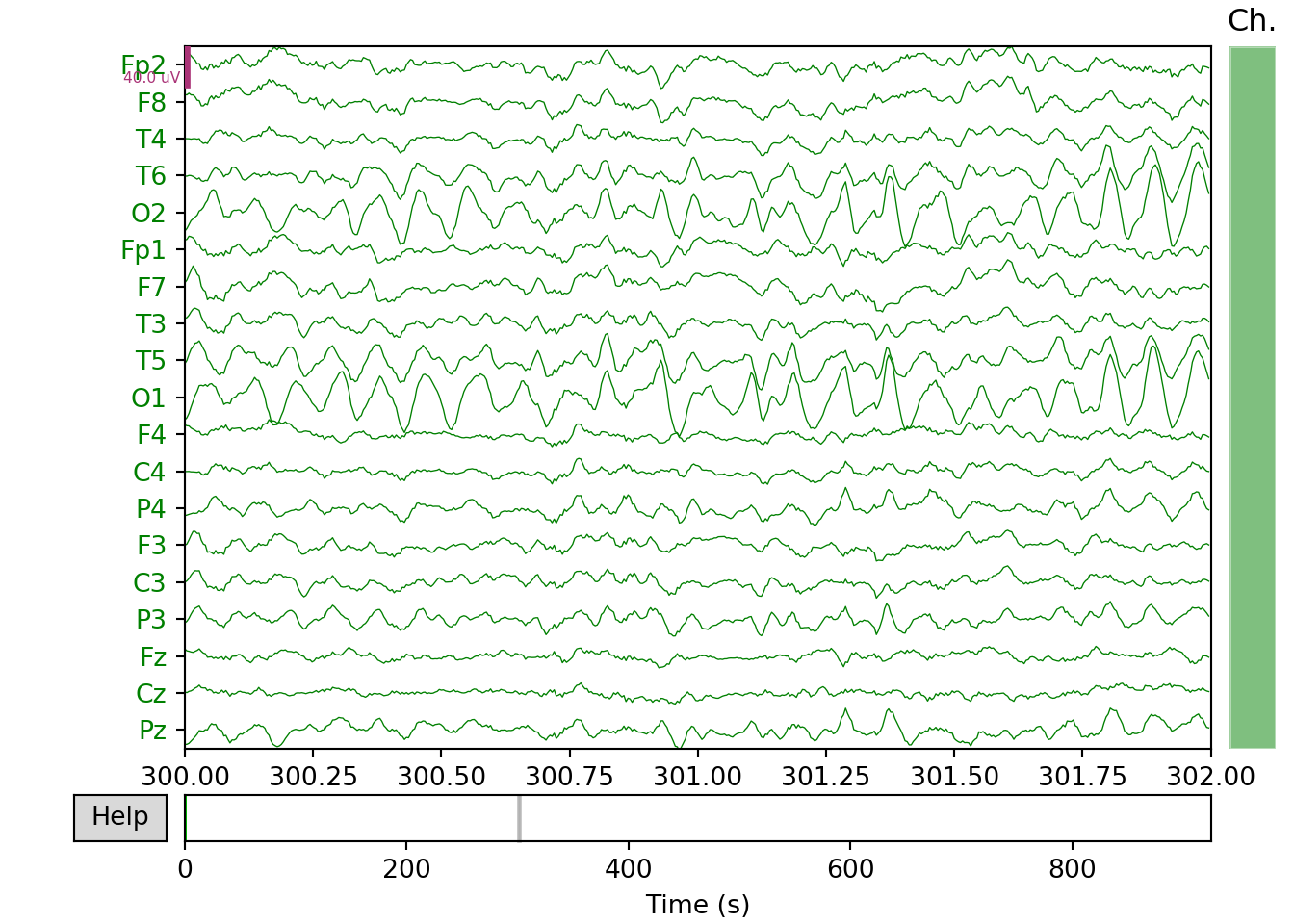

xfil_h.plot(start=300, duration=2, bgcolor='w',show=False, events=None,proj=False,color='green')#plotting of the filtered signal

SZ patient

xfil_s=raw_s.filter(0.5, 100., fir_design='firwin')#Bandpass filtering
## Filtering raw data in 1 contiguous segment
## Setting up band-pass filter from 0.5 - 1e+02 Hz
##
## FIR filter parameters
## ---------------------
## Designing a one-pass, zero-phase, non-causal bandpass filter:
## - Windowed time-domain design (firwin) method
## - Hamming window with 0.0194 passband ripple and 53 dB stopband attenuation
## - Lower passband edge: 0.50
## - Lower transition bandwidth: 0.50 Hz (-6 dB cutoff frequency: 0.25 Hz)
## - Upper passband edge: 100.00 Hz
## - Upper transition bandwidth: 25.00 Hz (-6 dB cutoff frequency: 112.50 Hz)
## - Filter length: 1651 samples (6.604 sec)

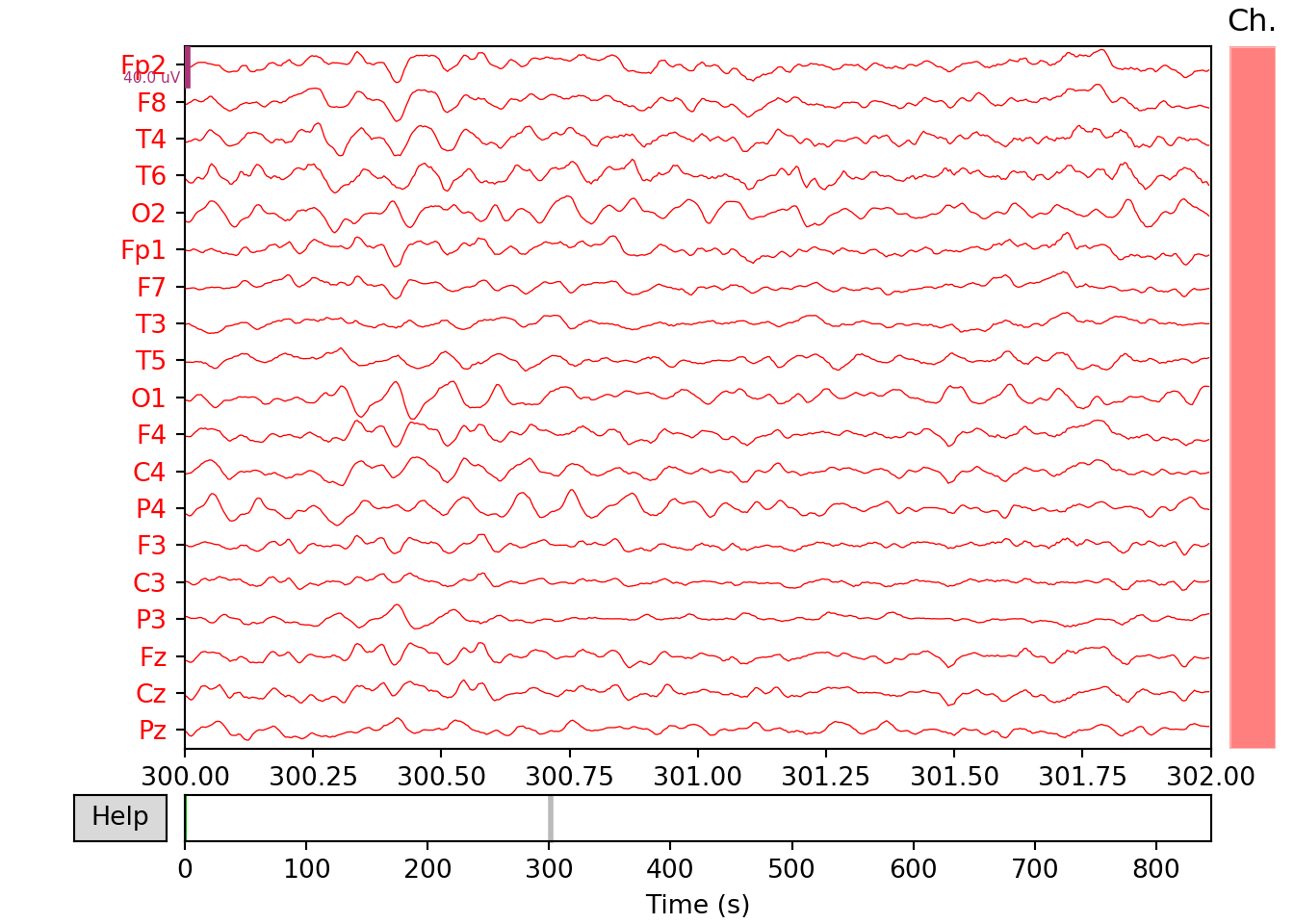

xfil_s.plot(start=300, duration=2, bgcolor='w',show=False, events=None,proj=False,color='red')#plotting of the filtered signal

3.5 The power spectral density (PSD)function of the EEG signal

This code performs the Power Spectral Density (PSD) function of the Filtered EEG signal.

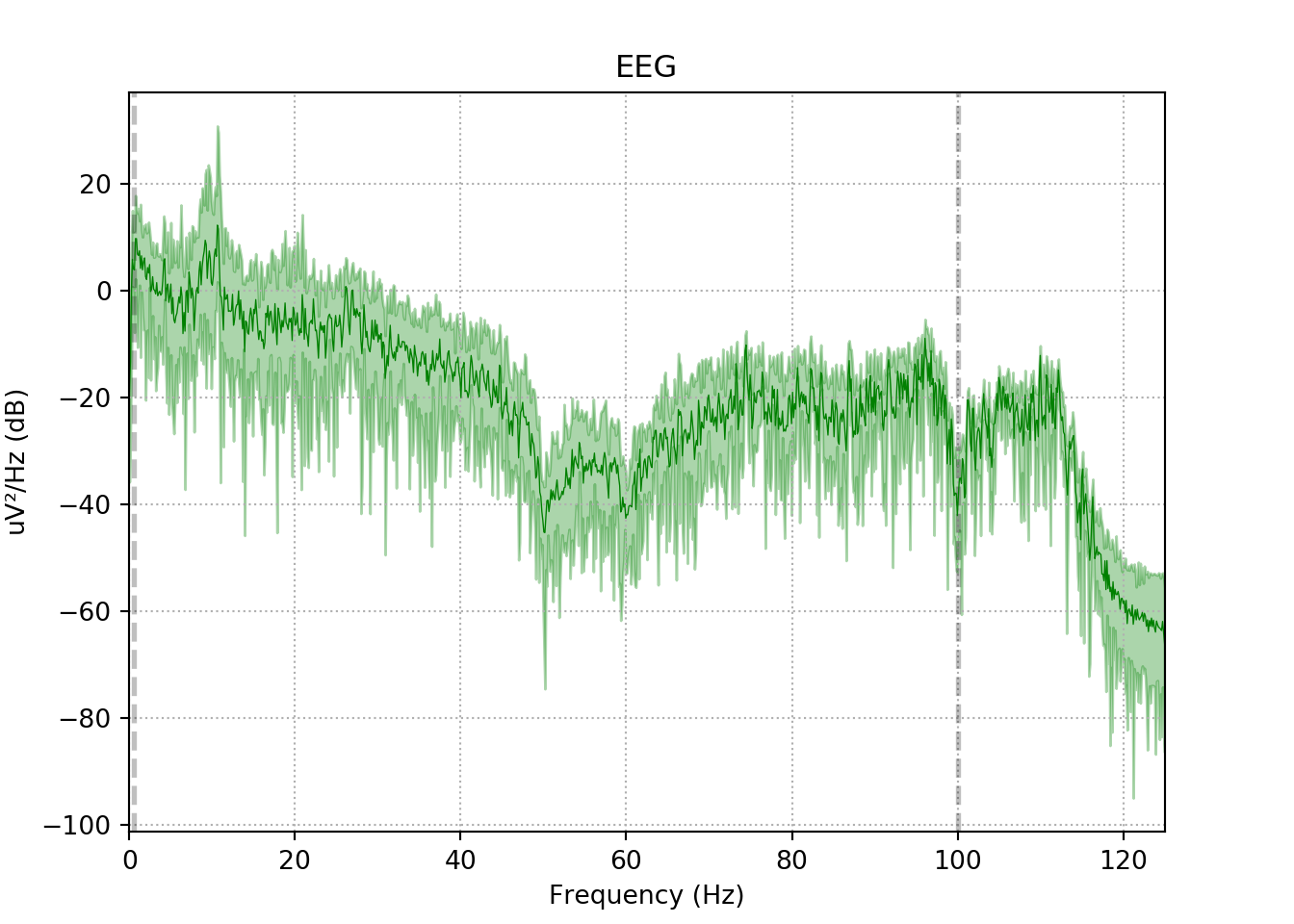

Healthy Control

xfil_h.plot_psd(area_mode='range', tmax=10.0, show=False, average=True, color='green')

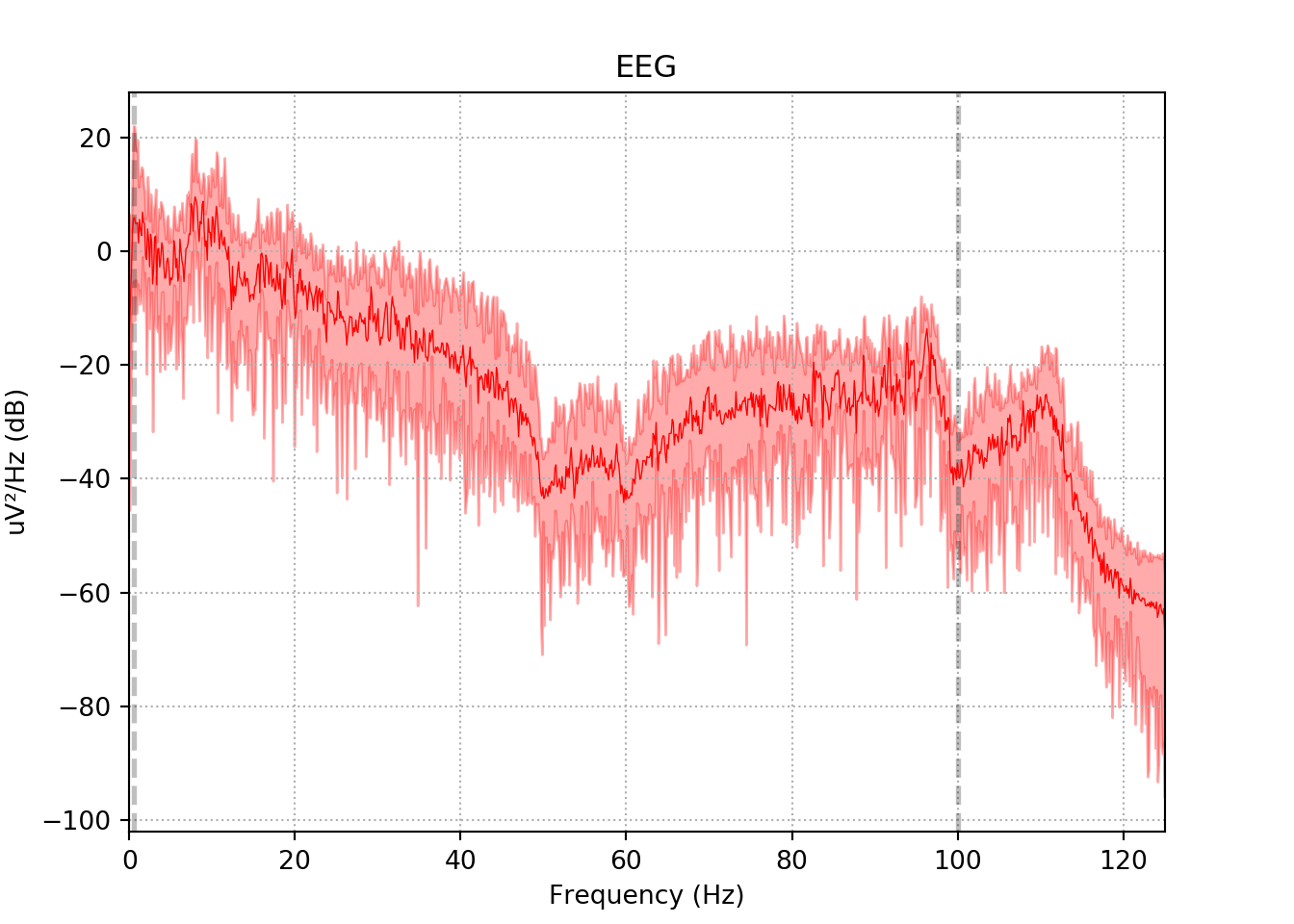

SZ Patient

xfil_s.plot_psd(area_mode='range', tmax=10.0, show=False, average=True, color='red')
